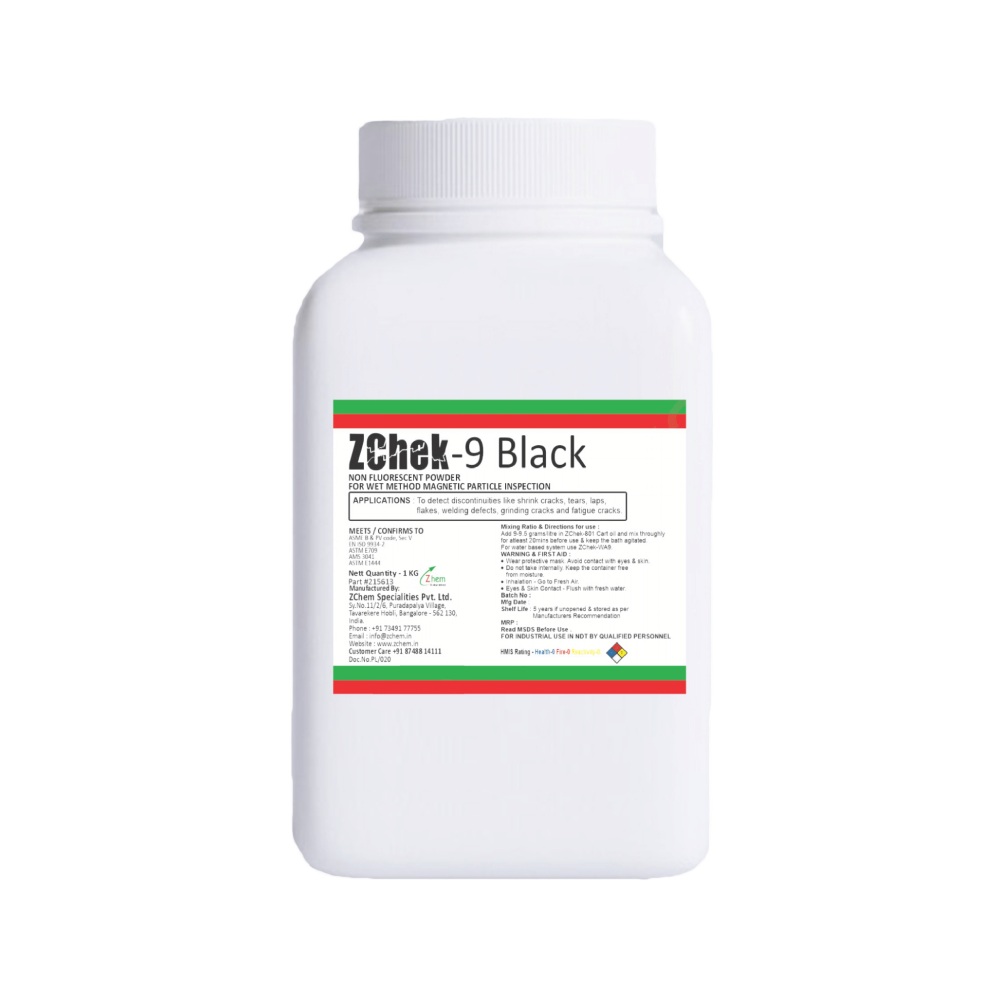

ZChek-9 Black

Oil-Based Visible Magnetic Particle Suspension

ZChek-9 Black is a black dry powder formulated to be used in wet method Magnetic Particle Inspection to detect discontinuities on light colored surfaces for optimum color contrast. Generally used for Non fluorescent Magnetic Particle inspection in Fabrication, castings & Bright Bars. 9 black may be suspended
in either ZChek-801 cart oil or in water. When water as a vehicle use conditioning agents ZChek-WA9.

Download TDS
Download MSDS
Batch Certificate
Contact us for more details
SKU: ZChek 9 Black Categories: , ,
Description

Product Properties

  • NDT Type: Visible Magnetic Particle Testing
  • Particle Suspension Vehicle: Carrier II (Petroleum Distillate)
  • Required Equipment: Magnetizing device

Applications

Ideal Application: Detecting fine and medium discontinuities, Difficult to reach areas, Field testing, In-service inspections, Light surfaces, Machined parts, Spot inspections

Defect Examples: Fatigue cracks, Grinding cracks, Inclusions, Laps, Quenching cracks, Seams, Shrink cracks, Tears, Welding defectsatigue cracks, Grinding cracks, Inclusions, Laps, Quenching cracks, Seams, Shrink cracks, Tears, Welding defects

Approvals / Confirms

  • ASME B & PV Code, Sec V
  • EN ISO 9934-2
  • ASTM -E 709
  • AMS 3041
  • ASTM -E 1444
