ZC-230 Series
Back to products
V3 Phase-Series

Custom Built MPI

AC Electromagnetic Yoke

For Further Information on Technical & Commercial Details, Kindly fill the Custom Built Information Sheet

MPI Checklist
Contact us for more details
SKU: Custom Built MPI Categories: , ,
Description

We have made custom built MPI Equipment for following applications

Automotive Application

Engine Components

  • Engine block and cylinder
  • Crankshafts
  • Connecting Rods
  • Pistons and Piston Pins
  • Rocker Arms
  • Rocker Shafts
  • Cylinder liners
  • Tappets
  • Engine Valves
  • Camshafts
  • Engine Valves

Transmission & Steering

  • Transmission Gears
  • Input & output shafts
  • Steering Shafts / Drive shafts
  • Tripots and CV joints, Tulips
  • Steering Knuckles
  • Stub Axles
  • Fly wheels
  • Rack bars & Shafts
  • Gears & pinions

Under Chassis & Structural

  • Front Axle Beams
  • Rear Axle shafts
  • Suspension Springs
  • Stabilizer Bars
  • Fasteners
  • Propeller shaft parts
  • Rear Axle & Differential Parts
  • Alloy Wheels

Aerospace Applications

  • Turbine Blades
  • Landing Gears
  • Aircrafts Structural Parts
  • Aerospace Engine Components

Oil & Gas Applications

  • Valves (Gate valves, Butterfly Valves, Pressure Relief Valves, Ball valves, Diaphragm Valves, Control Valves)
  • Valve Bodies
  • Dredging
  • OCGT
  • Drill Parts

View Videos on Past Projects

Please fill the form

ZChem expert will provide you product details

Please enable JavaScript in your browser to complete this form.
Name
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Custom Built MPI”

Your email address will not be published. Required fields are marked *

Shipping & Delivery

Related products

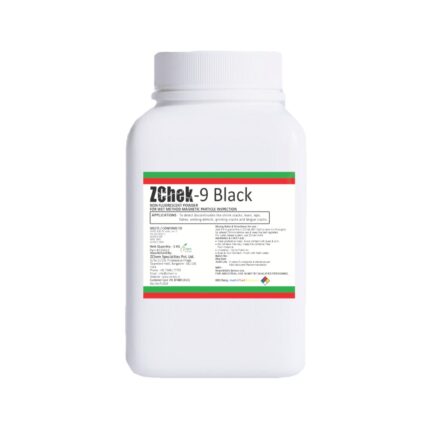

ZChek-9 Black

, ,

Oil-Based Visible Magnetic Particle Suspension

ZChek-9 Black is a black dry powder formulated to be used in wet method Magnetic Particle Inspection to detect discontinuities on light colored surfaces for optimum color contrast. Generally used for Non fluorescent Magnetic Particle inspection in Fabrication, castings & Bright Bars. 9 black may be suspended in either ZChek-801 cart oil or in water. When water as a vehicle use conditioning agents ZChek-WA9.
Download TDS
Download MSDS
Batch Certificate
Contact us for more details
Read more

ZChek-WP

, ,

White Contrast Paint

ZChek-WP is a high-performance solvent-based white contrast paint used for providing an excellent background while performing Magnetic Particle Inspection using Non-Fluorescent Black Powder, recommended to use with ZChek-9E Black.
Download TDS
Download MSDS Aerosol
Batch Certificate
Contact us for more details
Read more

ZC-Series

, ,

Magnetic Particle Wet Benches with AC and DC Magnetization

MPI Machines equipped with AC/DC magnetization offering both circular and longitudinal magnetic field outputs. The Magnetic Particle Inspection Equipment ZC 230 is designed and manufactured to deliver 2500 Amps AC / 3000 Amps FWDC/HWDC. The 1phase FWDC is extremely useful to detect Near surface discontinuities whereas the AC is used to detect Surface discontinuities. Independently controlled contact and coil circuits determines superior indication visibility.
Contact us for more details
Read more

ZC-9D

, , ,

AC/HWDC Electromagnetic Yoke

The light weight electromagnetic yoke is the ideal tool for detection of surface or sub-surface cracks and flaws in any ferromagnetic material. No other low cost, portable equipment offers such versatility in Magnetic Particle Inspection. Fast and simple to operate, it is widely used with either dry or wet method fluorescent or non – fluorescent magnetic powders, in the testing of welds, automotive or railroad components, machine parts, steel and grey iron castings, forgings and in plan inspection, maintenance and repair.
Download Brochure
Contact us for more details

Technical Specifications

  • Input supply – 220V, 50Hz, 1 Ph
  • Input current – 2 Amps
  • Distance across poles – 0 to 300 mm
  • Magnetic field AC – Constant level, DC-Pulsed, infinitely variable.
  • Lifting power Approx. 27 Kg. at 100mm spacing HWDC mode.
  • Yoke Weight 3.5 Kgs approx.
  • Controls On/Off Switch, AC/DC Switch, DC Field intensity potentiometer
Read more

D-Series

, ,

Magnetic particle Equipment with 3-Phase FWDC Capability

ZChem manufactures most powerful wet magnetic bench units for maximum magnetization with 3-phase FWDC capability and Pole reversing DC demagnetization. The D-Series is one of our most powerful wet magnetic benches. Providing 3-phase Full Wave Direct Current, this MPI equipment offers maximum magnetization for finding surface and sub-surface defects with clearer indications while using minimal power. The two outputs are independently adjustable to set each magnetic field, circular or longitudinal. D-Series magnetic benches are available in two models: ZC-600D and ZC-100D
Contact us for more details
Read more

ZChek-F9W

, ,

Wet Method Fluorescent Magnetic Particles

ZChek-F9W is a Green Colored water based Magnetic Particle Powder designed to be fluorescing Bright Green under UV Light. ZChek-F9W consists of high sensitivity particles for detection of very fine discontinuities in Ferromagnetic materials. Using the state-of-the-art encapsulation technology, ZChek-F9W is manufactured to exhibit excellent properties (High permeability, low retentivity, high mobility and optimum particle distribution) required for high sensitive fluorescent MPI process. Special additives in F9W provide excellent particle mobility in water medium and avoid flash rusting of parts.
Download TDS
Download MSDS
Batch Certificate
Contact us for more details
Read more

ZP-Series

, ,
Portable Magnetizing MPI Equipment | ZChem® ZP-Series Range - 2000 AMPS - 3000 AMPS At ZChem®, we recognize that not all components can be moved for magnetic particle inspection (MPI). That’s why we offer versatile, high-performance mobile magnetizing solutions designed to bring the testing station directly to the part. P-Series: Portable Magnetizing Unit The ZChem® P-Series is engineered for on-site MPI applications, ensuring flexibility and reliability in challenging inspection environments. These mobile units are available with AC, Full-Wave DC (FWDC), or Half-Wave DC (HWDC) output, with power ratings tailored to your specific load requirements. With industry-leading technology and robust performance, ZChem®’s mobile MPI solutions deliver unmatched convenience and accuracy for non-destructive testing (NDT) professionals worldwide. Contact us today to learn more about our NDT consumables and equipment solutionsor to request a consultation. For more details or customised solutions, contact ZChem today.
Download TDS
Contact us for more details
Read more

ZC-9

, , ,

AC Electromagnetic Yoke

AC electromagnetic yoke, ergonomically designed to improve productivity and reduce operator arm and wrist fatigue. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing. Lightweight with an ergonomic grip and trigger, the ZC-9 is designed for the rugged demands of field inspection. Featurin a rugged cord and an isolated trigger switch; the ZC-9 is easily serviceable.
Download Brochure
Contact us for more details

Technical Specifications

  • Input supply – 220V, 50Hz, 1 Ph
  • Distance across poles – 0 to 300 mm
  • Lifting power Approx. 4.5Kg. at 100mm spacing
  • Yoke Weight 2.5 Kgs approx.
  • Controls On/Off Switch.
Read more
