MPI/MT System For Coupling Inspection

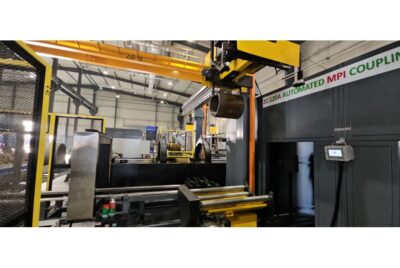

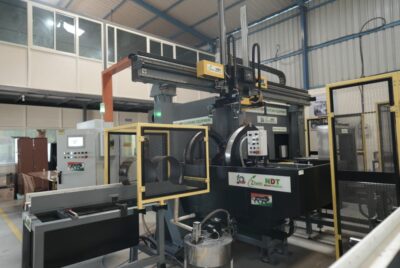

ZChem NDT specializes in the production of Automated Magnetic Particle Inspection systems tailored for efficient and high-throughput inspection of pipe ends. Designed to meet the demands of modern pipe finishing lines, our systems can seamlessly integrate into existing processes, maximizing productivity without compromising quality. These systems ensure a smooth “in-line” operation, aligning perfectly with the fast-paced nature of pipe manufacturing environments.

Technical Specification

• All our MPI/MT automated systems meet ASTM, ASME & API standards.
• Custom Build solution and layout as per customer request.
• Automatic CONTACTLESS Magnetization (both circular & longitudinal /Toroidal)
• Multidirectional Magnetization
• Split Conductor Magnetization on the ID of the Pipe and the current is flown though the ID which will induce the circular magnetization to detect the longitudinal & angular discontinuities with the ID of the Pipe for the Present length of the Pipe
• ID and OD of the Pipe End can be inspected
• High Operator level safety

• Dark Adaption timer adopted to meet the ASTM requirements.
• All operations on HMI and no manual switches.
• Easy setting of Parameters in the MPI Machine
• Two separate power transformers one each for central conductor and coil current. This produces the most balanced magnetic field which enhances the crack detection.
• Mild steel structure and rigid Head & Tail stocks – Vertical Clamping
• Motorized operation for HEAD STOCK, TAIL STOCK & COIL
• Servo Motor or Pneumatic Operation for Split heads magnetization.
• ZChem can also manufacture Pipe Handling System to integrate with MPI Bench Equipment.
